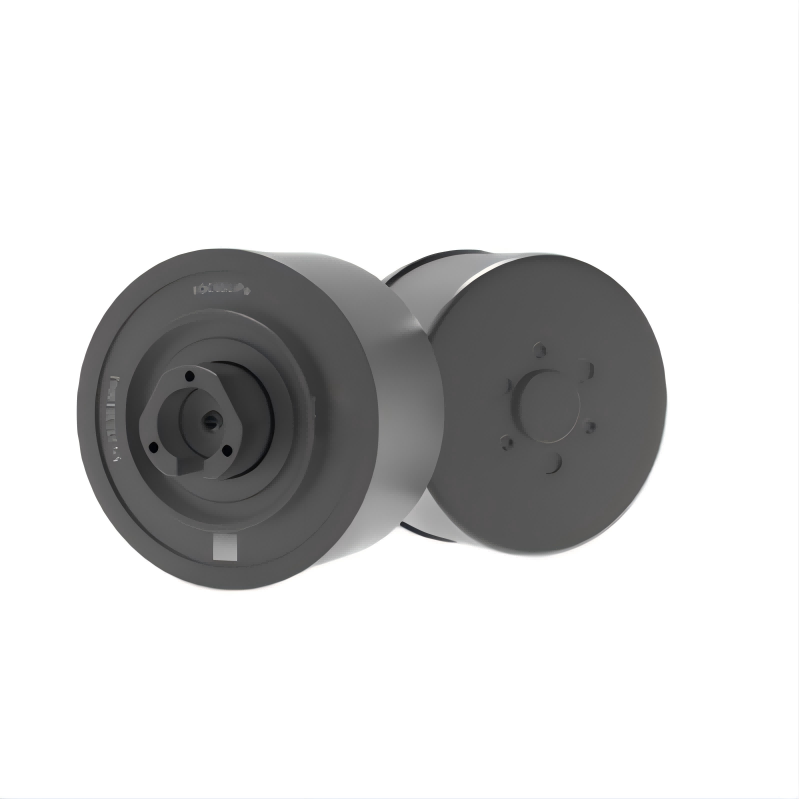

Industrial Robot Vacuum Two-Wheel Drive Motor M0701

Name: Industrial Robot Vacuum TwoWheel Drive Motor M0701
Brand: SENINTER
Price: 1 USD

Rated Speed : 200RPM

Brand Name : SENINTER

Model Number : M0701

Rated Voltage : 24VDC

Communication Protocol : RS485

Rated Power : 25W

Rated Torque : 1.2N.m

Place of Origin : CHINA

Certification : CE ROHS

Contact Now

M0701 Series: This motor is designed for the two‑wheel drive chassis of industrial robot vacuums, serving as the drive wheel motor.

Ultra-low noise, high precision, and zero backlash ensure quiet and accurate operation. The direct-drive system delivers fast response with zero latency. Long service life is achieved thanks to high-quality bearings, while the compact structure allows for a large hollow shaft design. The simple, highly integrated design uses relatively few components, eliminates mechanical friction in the transmission, and achieves a transmission efficiency close to 100%.

Dimension Drawing

Industrial Robot Vacuum Two-Wheel Drive Motor M0701

Motor Technical Parameters

Parameter	Unit	Value
Overall Dimension	mm	Φ75.25×42
Rated Voltage	VDC	24
Rated Power	W	25
Rated Torque	N·m	1.2
Stall Torque	N·m	4.5
Rated Speed	rpm	200
No-load Speed	rpm	300
Rated Current	A	1.55
Stall Current	A	8.5
Module Mass	g	730
Noise Level	dB	≤40
Encoder Resolution	bit	12
Communication Protocol	—	RS485
IP Rating	—	IP54
Insulation Class	—	B
Withstand Voltage	VAC/Hz	600/50
Operating Temp.	℃	-20~105
Operating Humidity	%	＜85
Storage Temp.	℃	-20~65
Storage Humidity	%	＜85

Motor Characteristic Curve

Industrial Robot Vacuum Two-Wheel Drive Motor M0701

Industrial Robot Vacuum Two-Wheel Drive Motor M0701 Images
